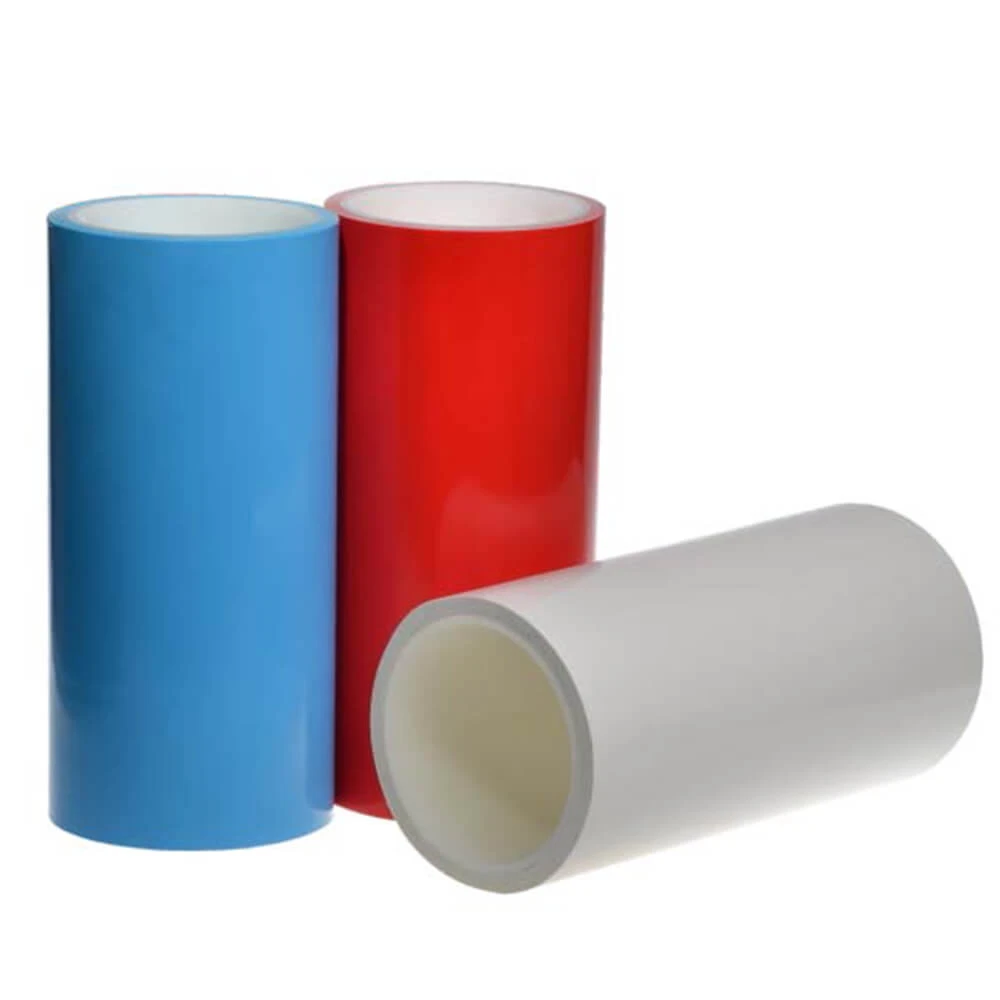

Glass fiber thermal conductive tape is a type of tape that is designed to provide thermal conductivity while also offering the structural integrity of glass fibers. It is commonly used in electronic devices and applications where heat dissipation is important, such as in computer hardware, LED lighting, automotive electronics, and power supplies.
This type of tape typically consists of a thin layer of glass fibers embedded in a thermally conductive adhesive. The glass fibers help to improve the mechanical strength and stability of the tape, while the thermally conductive adhesive allows heat to transfer efficiently from one surface to another.
Glass fiber thermal conductive tape is often used to bond heat sinks to electronic components, such as CPUs and GPUs, to improve heat dissipation and prevent overheating. It can also be used for thermal management in other applications where efficient heat transfer is necessary.
Feature:
- Good stability, can effectively improve and deal with die cutting and bonding;
- The high adhesion adhesive provides excellent adhesion to a variety of surfaces;
- Good resistance to temperature, thermal conductivity, insulation properties.

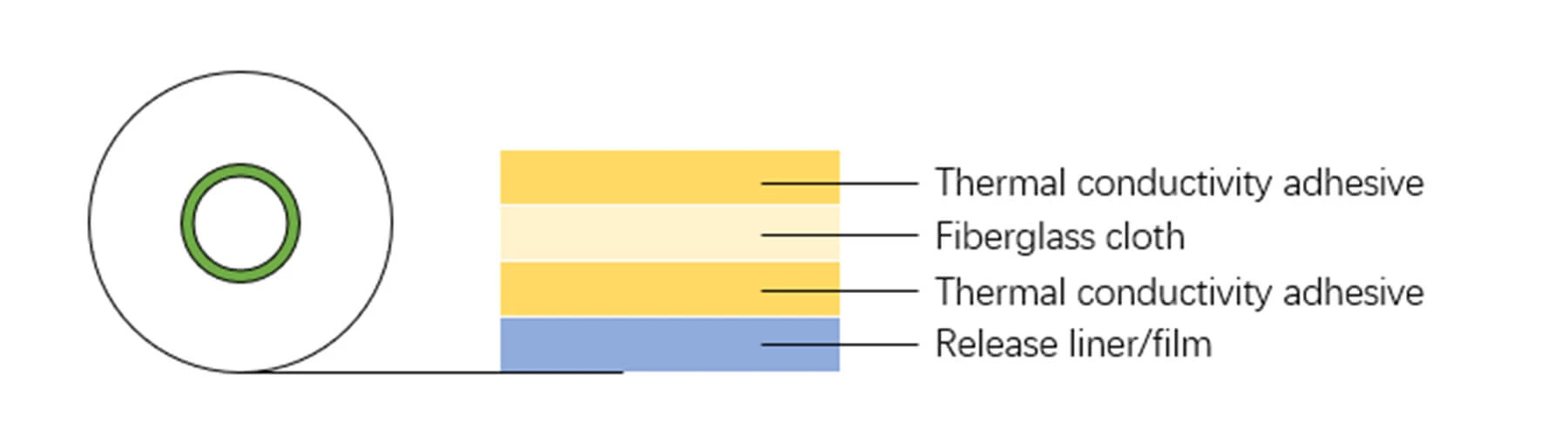

Structure:
Application:
Used for bonding and heat dissipation of LED strips, electronic components and other components.
| Product Code | Substrate Thickness (mm) | Tape Thickness (mm) | Peel Strength (kg/25mm) | Initial Viscosity (Ball Tack) | Long-term Temperature Resistance℃ | Short-term Temperature Resistance℃ | Thermal Conductivity |
| TY-050100 | 0.05 | 0.10 | ≥1.2 | ≥2 | 80 | 120 | 0.3-0.8 |
| TY-010200 | 0.10 | 0.20 | ≥1.5 | ≥2 | 80 | 120 | |
| TY-010350 | 0.10 | 0.35 | ≥1.5 | ≥3 | 80 | 120 | |
| TY-010500 | 0.10 | 0.50 | ≥1.8 | ≥3 | 80 | 120 | |
| TY-010700 | 0.10 | 0.70 | ≥2.0 | ≥3 | 80 | 120 |
