Plain & Square Conductive Cloth Single Sided Tape

How to choice?

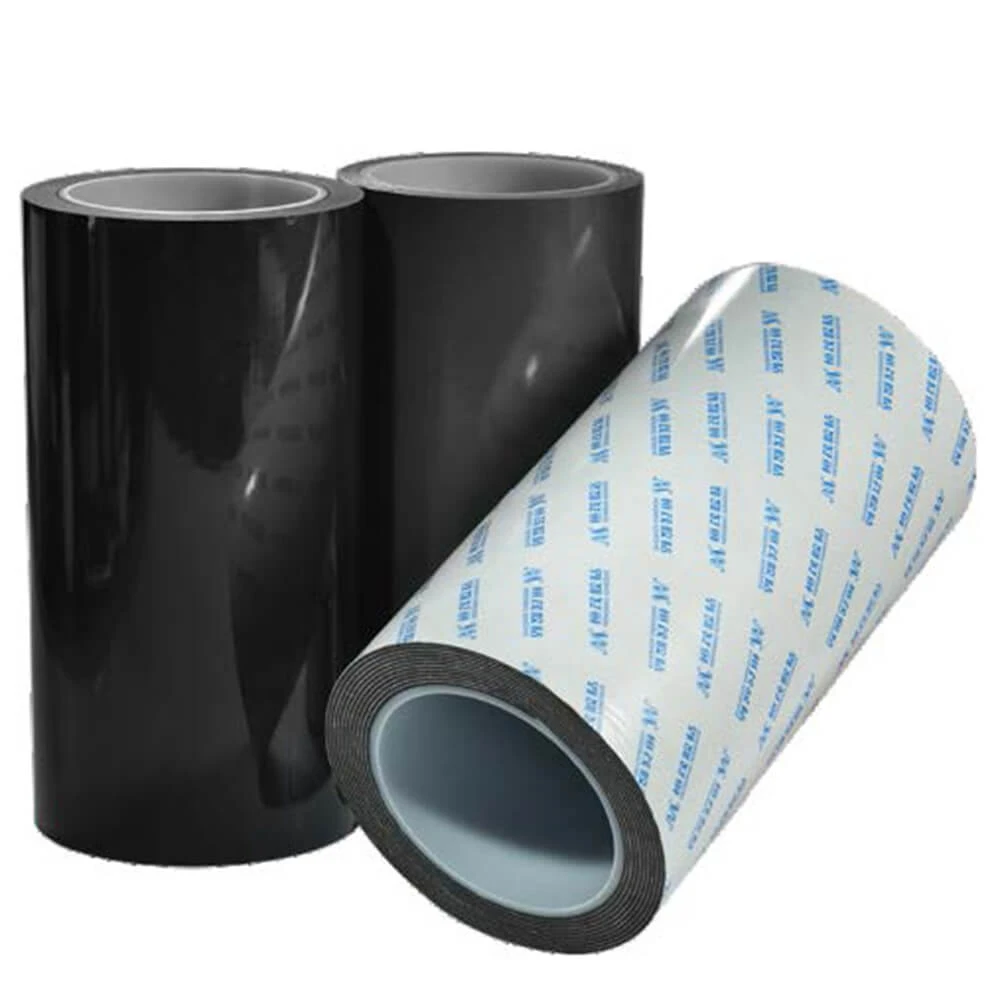

Waterproof foam tape is a type of adhesive tape specifically designed to provide a waterproof seal while also offering cushioning properties. It is commonly used in various industrial applications where a secure, moisture-resistant bond is needed along with protection against impact or vibration. Here are some key characteristics and applications of waterproof foam tape in industrial settings:
- Waterproof Properties: The primary feature of waterproof foam tape is its ability to resist water penetration, making it suitable for applications where exposure to moisture is a concern. This makes it ideal for outdoor use or in environments where there may be exposure to rain, humidity, or water splashes.

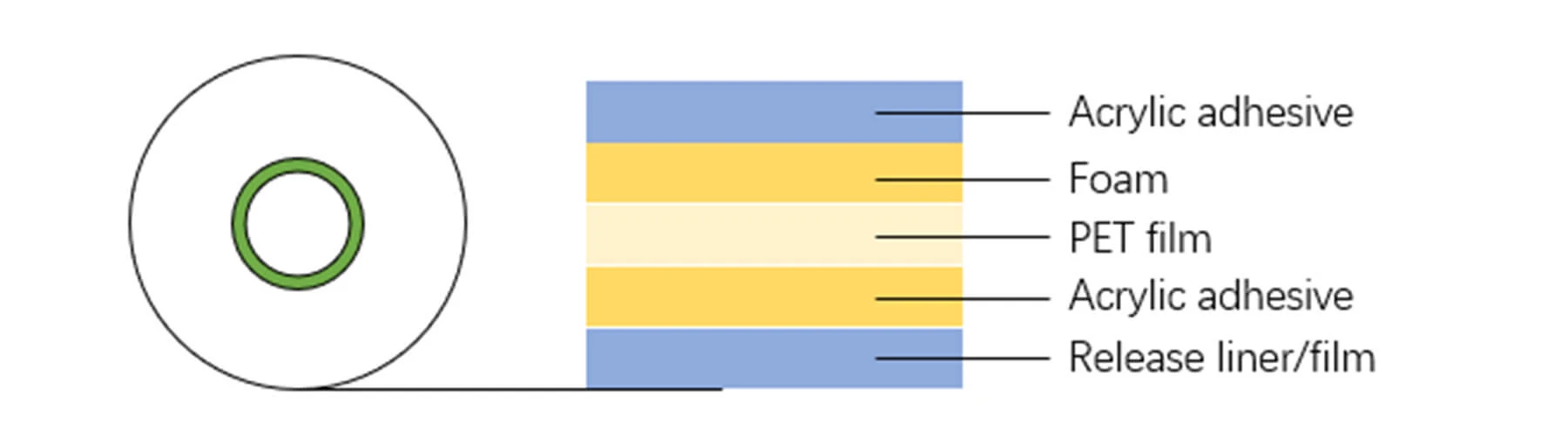

- Foam Cushioning: Waterproof foam tape typically consists of a foam substrate, which provides cushioning and helps distribute stress or impact forces. This makes it useful for applications where vibration damping or shock absorption is required, such as in transportation, machinery, or electronic devices.
- Adhesive Strength: The adhesive backing of waterproof foam tape ensures a strong and durable bond to various substrates, including metals, plastics, glass, and painted surfaces. It is essential for ensuring a secure attachment, especially in industrial applications where reliability is critical.
- Versatility: Waterproof foam tape comes in various thicknesses, widths, and colors to suit different application requirements. It can be easily cut or shaped to fit specific dimensions, making it versatile for a wide range of sealing and bonding applications in industries such as construction, automotive, marine, and electronics.
Overall, waterproof foam tape offers a reliable solution for creating watertight seals, providing cushioning and vibration damping, and ensuring durable bonds in various industrial applications where moisture resistance and performance are essential.
Feature:
- Use a soft, high performance polyethylene foam substrate. Has good impact resistance and paste effect;
- Able to firmly adhere to the metal and plastic, plastic materials with good adhesion;
- With high adhesion, good adhesion at high and low temperature environment;
- Excellent waterproof performance, accord with IPX7 standard.
Application:
Products are widely used in electronic and electrical products, mechanical parts, all kinds of small household appliances, mobile phone accessories, industrial instruments, computers and peripheral equipment, auto parts, audio-visual equipment, toys, cosmetics, etc.
Product Code | Substrate Thickness (mm) | Tape Thickness (mm) | Peel Strength (kg/25mm) | Initial Viscosity (Ball Tack) | Long-term Temperature Resistance℃ | Short-term Temperature Resistance℃ | Density g/cm³ |
TYDF-150B | 0.10 | 0.15 | ≥1.5 | ≥3 | 80 | 120 | 0.33 |
TYDF-250B | 0.15 | 0.25 | ≥1.5 | ≥4 | 80 | 120 | 0.35 |
TYDF-400B | 0.30 | 0.40 | ≥1.8 | ≥4 | 80 | 120 | 0.38 |
TYDF-1100B | 1.00 | 1.10 | ≥1.8 | ≥4 | 80 | 120 | 0.35 |
